OPEN BARREL TERMINALS FEMALE DISCONNECTORS (100PCS/PACK)
|

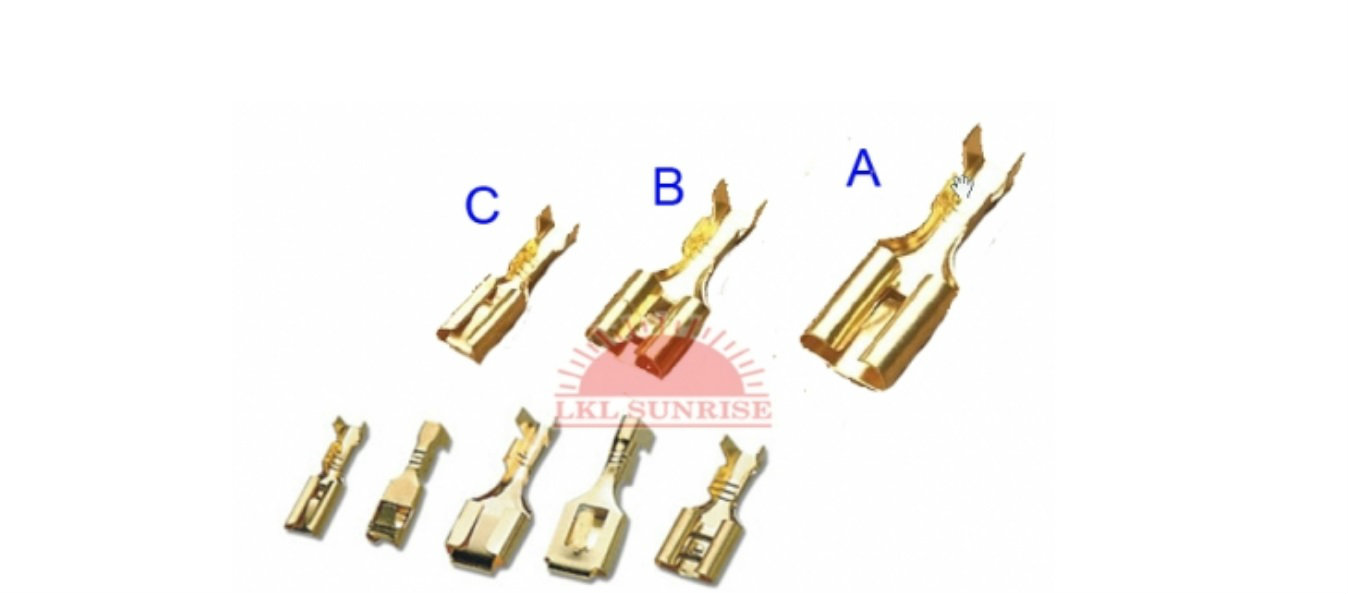

Fig |
ITEM No. |
Wire
range (AWG) |
Dimension |
W
(mm) |
L
(mm) |
E
(mm) |
|
A |
1764(6.3mm) |
22-16 |
6.3 |
17.8 |
7.8 |
|
B |
1764(4.8mm) |
22-16 |
4.8 |
13.8 |
6.3 |
|
C |
1764(2.8mm) |
22-16 |
2.8 |
15.0 |
6.1 |
|
R/A |
1764(6.3mm) |
22-16 |
6.3 |
13.0 |
6.8 |
